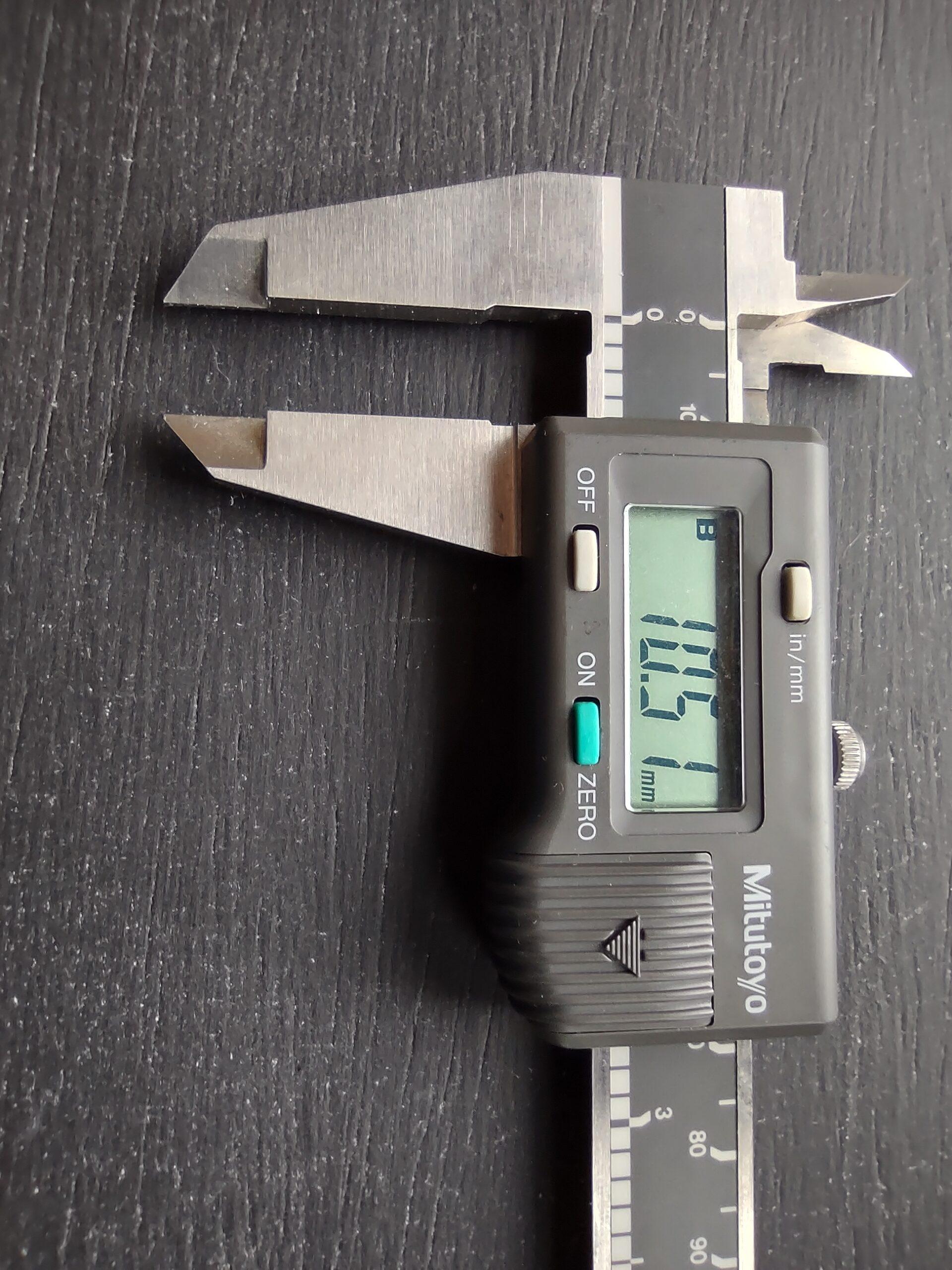

Introduction to GD&T in Automotive Design

Geometric Dimensioning and Tolerance (GD&T) in automotive part development is essential in designing and producing automotive components. From ensuring compatibility between mechanical parts to optimizing electrical systems like wire harnesses, GD&T defines precise requirements for form, fit, and function. This article explores GD&T’s application in automotive development, focusing on mechanical and electrical systems and the challenges engineers face.

Why is it Critical in Automotive Design?

The automotive industry requires high levels of precision to ensure safety, performance, and reliability. GD&T provides a standardized way to define tolerances, improving communication across teams. By using GD&T:

  • Mechanical parts align seamlessly, reducing assembly errors.
  • Electrical systems such as wire harnesses meet spatial constraints within tight vehicle interiors.
  • Manufacturers minimize material waste and costly rework.

GD&T in automotive applications ensures components work together flawlessly while meeting industry standards.  More importantly, the parts reliably fit and work together over the range of variation of the constituent parts and assemblies.

Application in Mechanical Systems

In mechanical systems like engines, suspensions, and braking mechanisms, GD&T allows engineers to:

  • Specify tolerances for critical dimensions like flatness, concentricity, and parallelism.
  • Ensure precise alignment of moving parts, reducing wear and tear.
  • Validate parts during inspection using Coordinate Measuring Machines (CMM).

However, interpreting GD&T symbols and applying them in complex designs often leads to challenges, especially when integrating multiple subsystems.  Below are examples of specific attributes:

1. Radius (R)

      • Definition: The distance from the center of a circle or arc to its edge.
      • Example: Specifying a fillet radius on the edge of a mechanical part to ensure smooth transitions and prevent stress concentrations.

2. Diameter (Ø)

      • Definition: The distance across a circle passing through its center.
      • Example: Ensuring the diameter of a hole aligns with the mating pin for precise assembly.

3. Flatness

      • Definition: The degree to which a surface deviates from being perfectly flat.
      • Example: Specifying flatness on a cylinder head gasket surface to ensure proper sealing.

4. Straightness

      • Definition: The amount a line or surface deviates from being perfectly straight.
      • Example: Ensuring the straightness of a shaft to avoid wobble during rotation.

5. Circularity (Roundness)

      • Definition: The uniformity of a circle’s edge around its center.
      • Example: Specifying circularity for a bearing’s outer race to ensure smooth rotation.

6. Cylindricity

      • Definition: The degree to which a cylinder’s surface is uniformly cylindrical.
      • Example: Ensuring a piston rod’s cylindricity to fit seamlessly into the cylinder.

7. Parallelism

      • Definition: The degree to which two surfaces or lines are equidistant.
      • Example: Specifying parallelism between the mounting surface of a bracket and its base.

8. Perpendicularity

      • Definition: The degree to which a surface or feature is at a 90° angle to another.
      • Example: Ensuring the perpendicularity of a bolt hole to the mounting surface is correct for proper alignment.

9. Concentricity

      • Definition: The alignment of a feature’s center axis with a datum axis.
      • Example: Ensuring the concentricity of a gear bore and its outer diameter for balanced operation.

10. Position

      • Definition: The location of a feature relative to a datum or reference.
      • Example: Defining the positional tolerance of a hole pattern in a mounting plate to match mating parts.

11. Symmetry

      • Definition: The degree to which a feature is evenly distributed around a central plane or axis.
      • Example: Specifying symmetry for an automotive emblem to ensure aesthetic balance.

12. Profile (Line and Surface)

      • Definition: The tolerance zone for a line or surface’s shape.
      • Example: Defining surface profile tolerances on an aerodynamic body panel for reduced drag.

13. Angularity

      • Definition: The degree to which a feature deviates from a specified angle.
      • Example: Ensuring the angularity of a valve stem relative to its seat for proper sealing.

14. Total Runout

      • Definition: The combined variation of circularity and straightness along a part’s surface during rotation.
      • Example: Specifying total runout on a wheel hub to ensure smooth tire rotation.

GD&T in Electrical Systems: Wire Harness Development

Wire harnesses in modern vehicles are complex, routing hundreds of circuits through tight spaces. GD&T helps by:

  • Defining accurate tolerances for routing paths and connector interfaces.
  • Ensuring compatibility with mounting brackets and other structural components.
  • Reducing the risk of interference with nearby mechanical parts.

The main challenge is balancing tolerance precision with manufacturing variability. Excessively tight tolerances increase costs, while loose tolerances can lead to harness misalignment and functional issues.

Challenges in Applying GD&T in Automotive Systems

While GD&T in automotive part development is invaluable, several difficulties arise during its application:

  1. Interpreting Standards: Engineers often need advanced training to interpret and apply GD&T symbols accurately.
  2. Integration Across Disciplines: Mechanical and electrical systems must coexist, requiring collaboration to avoid clashes in assembly tolerances.
  3. Manufacturing Constraints: Tighter tolerances increase production costs and require more sophisticated tools.
  4. Quality Control: Inspecting complex features can be time-consuming and requires specialized equipment.

Addressing these challenges demands a combination of engineering expertise, robust design tools, and efficient quality assurance processes.



Conclusion: GD&T Drives Precision in Automotive Design

GD&T in automotive systems is pivotal in ensuring part compatibility and performance. Whether for mechanical components or electrical wire harnesses, GD&T improves design accuracy and manufacturing efficiency. However, its application requires skill, collaboration, and technological investment to overcome the inherent challenges.

By mastering GD&T, automotive engineers can create reliable vehicles that meet the demands of modern consumers and regulatory standards.
